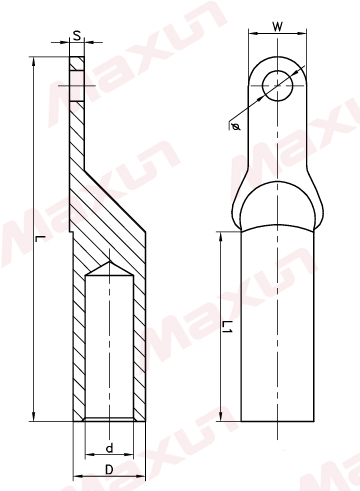

| 型号 | 主要尺寸(mm） | ||||||
| Φ | D | d | L | L1 | W | S | |
| DT-10 | 8.4 | 9 | 5.6 | 61 | 35 | 16 | 2.4 |
| DT-16 | 8.4 | 10 | 6.5 | 68 | 38 | 16 | 2.0 |
| DT-25 | 8.4 | 11 | 7.5 | 76 | 40 | 16 | 3.0 |
| DT-35 | 8.4 | 12 | 8.5 | 77 | 38 | 16 | 3.2 |
| DT-50 | 8.4 | 13 | 10 | 80 | 43 | 16 | 3.3 |
| DT-70 | 8.4 | 15 | 12 | 85 | 45 | 16 | 3.4 |
| DT-95 | 8.4 | 17 | 13.6 | 90 | 45 | 16 | 4.0 |
| DT-120 | 8.4 | 19 | 15.4 | 96 | 50 | 16 | 4.3 |
| DT-150 | 8.4 | 21 | 16 | 100 | 54 | 16 | 4.5 |
| DT-185 | 8.4 | 23 | 18 | 115 | 60 | 16 | 5.3 |
| DT-240 | 8.4 | 26 | 21 | 120 | 64 | 16 | 5.3 |
