Instructions for ordering

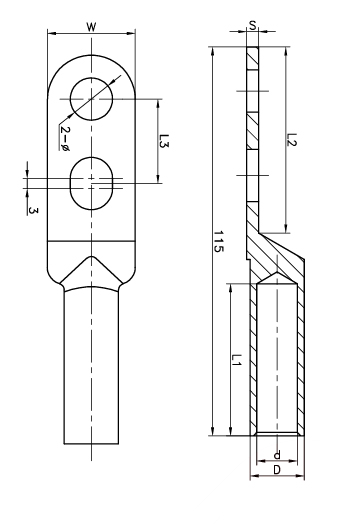

| 型号 | 主要尺寸(mm） | ||||||||
| Φ | D | d | L | L1 | L2 | L3 | W | S | |
| DTL-16S | 8.4 | 10 | 6.0 | 90 | 32 | 45 | 20 | 18 | 3.0 |
| DTL-25S | 8.4 | 12 | 7.0 | 93.5 | 38 | 44 | 20 | 18 | 3.2 |
| DTL-35S | 8.4 | 14 | 8.5 | 104 | 42 | 48.5 | 20 | 20 | 3.6 |
| DTL-50S | 8.4 | 16 | 9.5 | 112 | 46 | 50 | 20 | 23 | 4.0 |
| DTL-70S | 10.5 | 18 | 12.0 | 125 | 47 | 59 | 25 | 26 | 4.5 |
| DTL-95S | 10.5 | 21 | 13.0 | 136 | 53 | 60 | 30 | 28 | 5.8 |
| DTL-120S | 12.5 | 23 | 15.0 | 145 | 55 | 69 | 30 | 30 | 5.5 |
| DTL-150S | 12.5 | 25 | 16.0 | 150 | 55 | 70 | 30 | 34 | 6.0 |
| DTL-185S | 12.5 | 27 | 18.0 | 162 | 62 | 76 | 35 | 37 | 6.5 |
| DTL-240S | 12.5 | 30 | 20.0 | 170 | 65 | 78 | 35 | 40 | 7.0 |
| DTL-300S | 16.5 | 34 | 23.0 | 190 | 72 | 87 | 40 | 45 | 8.5 |
| DTL-400S | 16.5 | 38 | 26.0 | 195 | 75 | 87 | 40 | 50 | 8.5 |
| DTL-500S | 21 | 42 | 29.5 | 225 | 80 | 110 | 45 | 60 | 9.5 |
