Instructions for ordering

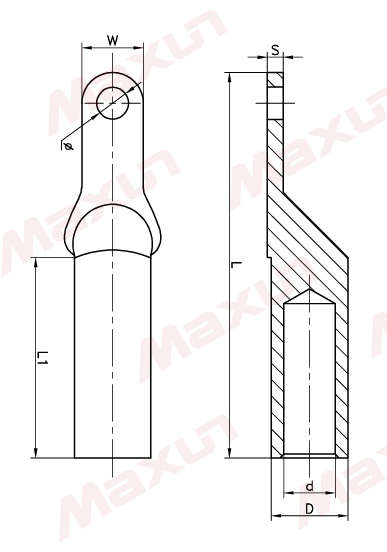

| 型号 | 主要尺寸(mm） | ||||||
| Φ | D | d | L | L1 | W | S | |
| DTL-25 | 8.4 | 12 | 7.6 | 71.3 | 35.5 | 16 | 2.4 |
| DTL-35 | 8.4 | 13.9 | 8.8 | 82.3 | 39 | 16 | 2.9 |
| DTL-50 | 8.4 | 15.9 | 10.5 | 89.7 | 45 | 16 | 3.1 |
| DTL-70 | 8.4 | 17.9 | 12 | 93.8 | 47.5 | 16 | 3.7 |
| DTL-95 | 8.4 | 19.9 | 13.3 | 100 | 52 | 16 | 4.1 |
| DTL-120 | 8.4 | 22 | 14.6 | 104 | 52.3 | 16 | 3.9 |
| DTL-150 | 8.4 | 24 | 17 | 111.5 | 50 | 16 | 4.9 |
| DTL-185 | 8.4 | 28.3 | 18.8 | 124 | 62 | 16 | 5.4 |
| DTL-240 | 8.4 | 30 | 21.5 | 131.5 | 67 | 16 | 6.6 |
