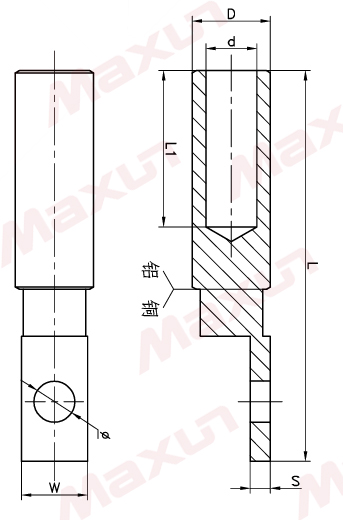

| 型号 | 主要尺寸(mm） | ||||||
| Φ | D | d | L | L1 | W | S | |
| DTL-10 | 8.5 | 16 | 4.5 | 87 | 42 | 14 | 4.2 |
| DTL-16 | 8.5 | 16 | 5.5 | 87 | 42 | 14 | 4.2 |
| DTL-25 | 8.5 | 16 | 7.0 | 87 | 42 | 14 | 4.2 |
| DTL-35 | 8.5 | 16 | 8.5 | 87 | 42 | 14 | 4.2 |
| DTL-50 | 10.5 | 20 | 9.5 | 100 | 50 | 17 | 5.2 |
| DTL-70 | 10.5 | 20 | 11.5 | 100 | 50 | 17 | 5.2 |
| DTL-95 | 10.5 | 20 | 13 | 100 | 50 | 17 | 5.2 |
| DTL-120 | 13.0 | 25 | 15 | 120 | 60 | 21 | 6.2 |
| DTL-150 | 13.0 | 25 | 16.5 | 120 | 60 | 21 | 6.2 |
| DTL-185 | 13.0 | 32 | 18 | 125 | 60 | 25 | 7.2 |
| DTL-240 | 13.0 | 32 | 19.5 | 125 | 60 | 25 | 7.2 |
| DTL-300 | 13.0 | 34 | 23.5 | 145 | 65 | 30 | 8 |
